Description:

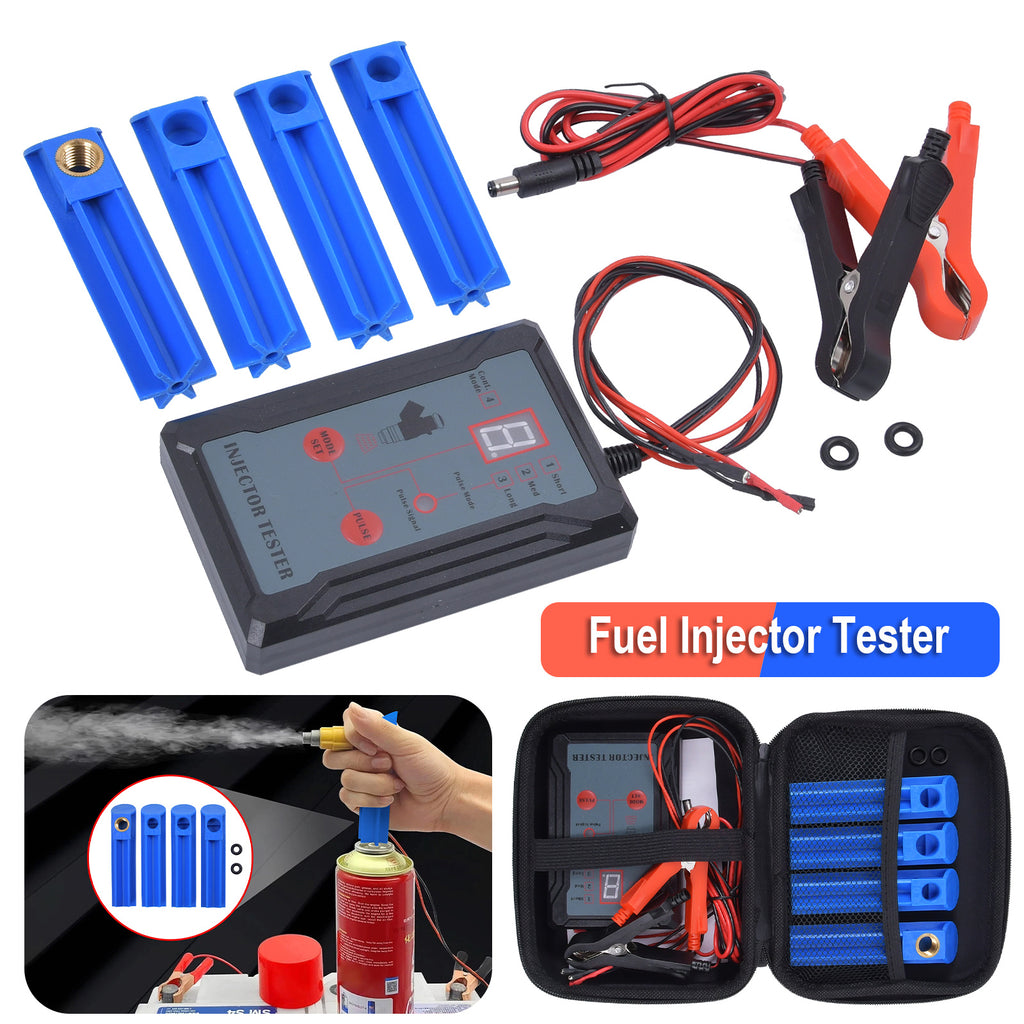

【Upgraded Ideal Tools】The fuel injector tester is designed with 8 pulse modes and LED display indicator lights. It features advanced cleaning and diagnostic capabilities, allowing you to easily diagnose and fix injector issues such as blockage, leakage, damage, and burnout. It consists of 4 pulse signal output modes(short/medium/long/continuous pulse) with 2 output Power(12V/5V) to check the conditions of the injectors.
【4 Pulse Signal Output Modes & 8 Pulse Modes】Fuel injector cleaner kit has two output voltage levels and 4 pulse signal output modes(short/medium/long/continuous pulse mode), with the continuous pulse mode helping to identify good and bad injectors. In addition, fuel injection cleaner has high and low-power drive modes, which can test injectors under various powers. Compared with the injector testers on the market that only have high power modes, the functions are more comprehensive.
【4 Injector Cleaner Adapters】This fuel injector cleaner set comes with 4 different sizes of adapters to connect the injector nozzle and cleaning liquid. The adapters can fit most types of car motorcycle fuel injectors except the Cylinder injection nozzle.
【Reverse Polarity and Short Circuit Protection】The tester kit is designed with input power reverse polarity protection and output short circuit protection. The LED indicator will give an alert if there are any fuel injectors damaged or output pulse short circuits.
【4 Pulse Signal Output Modes & 8 Pulse Modes】Fuel injector cleaner kit has two output voltage levels and 4 pulse signal output modes(short/medium/long/continuous pulse mode), with the continuous pulse mode helping to identify good and bad injectors. In addition, fuel injection cleaner has high and low-power drive modes, which can test injectors under various powers. Compared with the injector testers on the market that only have high power modes, the functions are more comprehensive.
【4 Injector Cleaner Adapters】This fuel injector cleaner set comes with 4 different sizes of adapters to connect the injector nozzle and cleaning liquid. The adapters can fit most types of car motorcycle fuel injectors except the Cylinder injection nozzle.
【Reverse Polarity and Short Circuit Protection】The tester kit is designed with input power reverse polarity protection and output short circuit protection. The LED indicator will give an alert if there are any fuel injectors damaged or output pulse short circuits.
Mode 0: standby state, no output
Mode 1: Single pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out a pulse with a pulse width of about 255 milliseconds.
Mode 2: short pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out 50 pulses with a pulse width of about 7 milliseconds.
Mode 3: long pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out 100 pulses, and the pulse width is about 3.5 milliseconds.
Mode 4: continuous pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.
Note: During the pulse output period, the MODE SET button is invalid, and the working mode can only be selected by pressing the PULSE button again to terminate the output
Mode 5: Single pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out a pulse with a pulse width of about 255 milliseconds.
Mode 6: short pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out 50 pulses with a pulse width of about 7 milliseconds.
Mode 7: Long pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out 100 pulses, and the pulse width is about 3.5 milliseconds.
Mode 8: continuous pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.
Mode 1: Single pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out a pulse with a pulse width of about 255 milliseconds.
Mode 2: short pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out 50 pulses with a pulse width of about 7 milliseconds.
Mode 3: long pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will send out 100 pulses, and the pulse width is about 3.5 milliseconds.
Mode 4: continuous pulse low power mode, in this mode, when the PULSE key is pressed, the instrument will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.
Note: During the pulse output period, the MODE SET button is invalid, and the working mode can only be selected by pressing the PULSE button again to terminate the output
Mode 5: Single pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out a pulse with a pulse width of about 255 milliseconds.
Mode 6: short pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out 50 pulses with a pulse width of about 7 milliseconds.
Mode 7: Long pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will send out 100 pulses, and the pulse width is about 3.5 milliseconds.
Mode 8: continuous pulse high power mode, in this mode, when the PULSE key is pressed, the instrument will output pulses continuously, the pulse rate is about 50 pulses every 1450 milliseconds, and the pulse width is about 7 milliseconds.
Note: During the pulse output period, the MODE SET button is invalid, and the working mode can only be selected by pressing the PULSE button again to terminate the output
Specifications:
Power supply: 12V battery or DC 12V (recommended 2A) power adapter
Working conditions: 0°C-40°C; relative humidity ≤80%
Storage conditions: -20°C-50°C; relative humidity ≤85%
Power supply: 12V battery or DC 12V (recommended 2A) power adapter
Working conditions: 0°C-40°C; relative humidity ≤80%
Storage conditions: -20°C-50°C; relative humidity ≤85%
Note:
1. Before using this instrument, the engine of the car must be turned off.
2. Do not smoke or ignite near the car.
3. Do not splash the fuel of the car on the hot engine parts.
4. Only use this instrument in a ventilated place.
5. Do not get close to any rotating (or moving) parts of the car, and do not touch any heat-generating parts of the car.
6. Do not short-circuit the positive and negative poles of the car battery.
7. Do not touch any car parts with dangerous voltage.
8. Wear qualified goggles.
9. After the test is complete, all disconnected vehicle connections should be properly restored.
1. Before using this instrument, the engine of the car must be turned off.
2. Do not smoke or ignite near the car.
3. Do not splash the fuel of the car on the hot engine parts.
4. Only use this instrument in a ventilated place.
5. Do not get close to any rotating (or moving) parts of the car, and do not touch any heat-generating parts of the car.
6. Do not short-circuit the positive and negative poles of the car battery.
7. Do not touch any car parts with dangerous voltage.
8. Wear qualified goggles.
9. After the test is complete, all disconnected vehicle connections should be properly restored.
Installation:
1. Turn off the car's engine.
2. Remove the wire plug of the vehicle injector to be tested, and then connect the two pulse output terminals of the instrument to the vehicle injector.
3. Then connect the red clip of the instrument to the positive terminal of the 12V car battery, and connect the black clip of the instrument to the negative terminal of the car battery.
4. Insert the DC plug into the port of the instrument
5. Press the MODE SET key to select the desired pulse signal output mode, and the screen will display the currently selected mode.
1. Turn off the car's engine.
2. Remove the wire plug of the vehicle injector to be tested, and then connect the two pulse output terminals of the instrument to the vehicle injector.
3. Then connect the red clip of the instrument to the positive terminal of the 12V car battery, and connect the black clip of the instrument to the negative terminal of the car battery.
4. Insert the DC plug into the port of the instrument
5. Press the MODE SET key to select the desired pulse signal output mode, and the screen will display the currently selected mode.
Package included:
1x Fuel Injector Tester
1x Carrying Bag
1x Instruction manual
2x Battery clips
4x Injector Adapters
1x Fuel Injector Tester
1x Carrying Bag
1x Instruction manual
2x Battery clips
4x Injector Adapters
