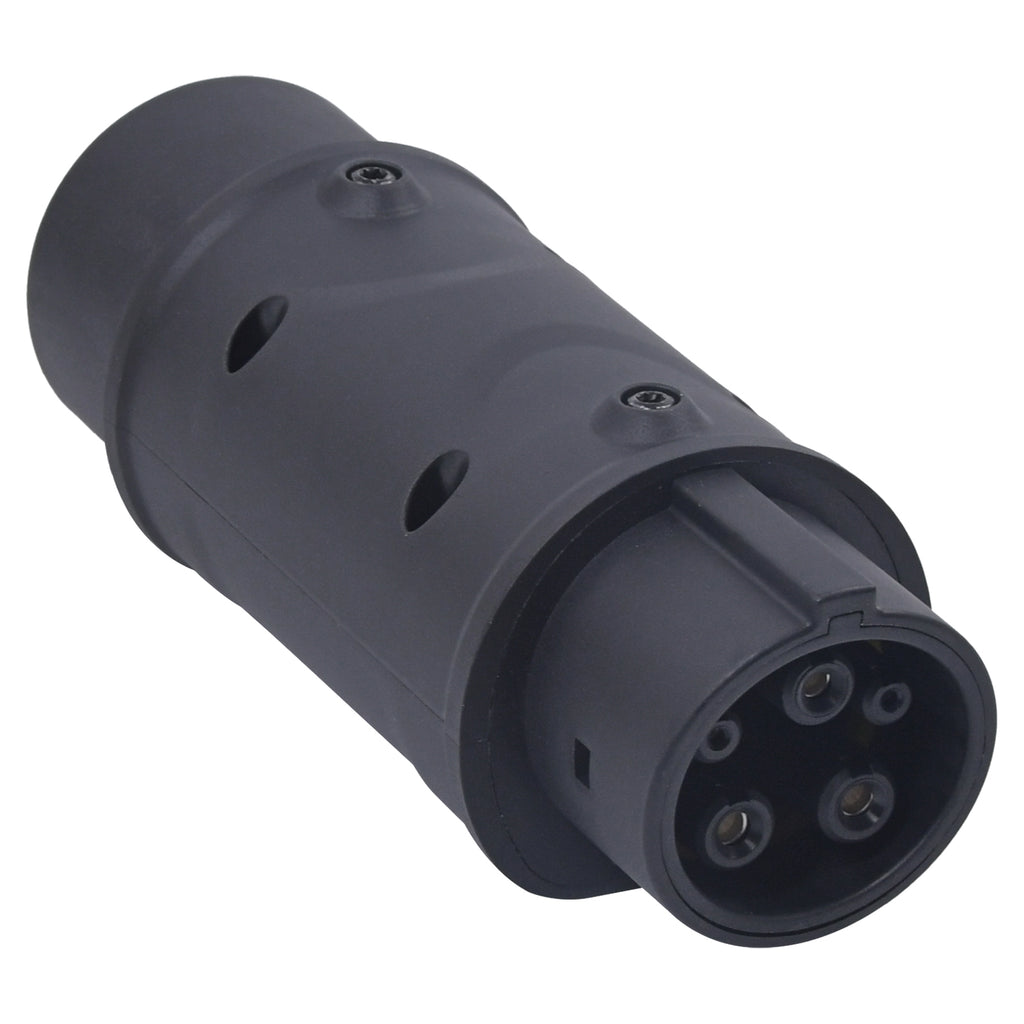

Type 2 To Type 1 EV Charging Adaptor EV Charger Connector

Type 2 To Type 1 EV Charging Adaptor EV Charger Connector

: In stock

£14.73 Sale

£14.73

Category:

Features:
  • Type 2 to Type 1 EV Charging Adapter (IEC 62196 to SAE J1772)：This EV charging adapter is designed to charge your Type 1 electric vehicle from Type 2 charging cable or charger, and type 2 to type 1 delivers 32A (7.4 kW) of power.
  • INTERFACE FEATURES: EV adapter type 2 to type 1, with type 2 on one side, male, 7-Pin (compliant with IEC62196 European standard).On the other side is type 1, female, 5-Pin (compliant with SAE J1772 American standard)
  • PLUG and PLAY: Type 1 to type 2 EV adapter small in size, 32A, compatible with 16A, maximum power of 7.4KW, AC 110V/250V. It can be easily transported by car to any place, suitable for public charging stations, home charging stations, and portable home chargers.
  • MATERIAL SAFETY: Type 2 to type 1 adapter with copper silver plated terminals ensure stable and efficient charging process, thickened insulation shell, wear-resistant and anti drop. IP54 waterproof and dustproof to solve daily waterproof problems (not completely waterproof, do not use in medium or immersed in water)
  • COMPATIBILITY: The Type1 interface complies with the SAE J1772 standard and is suitable for most American EV/PHEV models.
Specifications:
  • Housing material: Thermoplastic, flame retardant rating UL94V-0
  • Connector terminals materials: Silver plated copper alloy
  • Operating voltage: 250V
  • Rated Current：32A
  • Insulation resistance: >1000MΩ (DC500V)
  • Terminal temperature rise: <50K
  • Rated Power Supply: 7.4KW
  • Withstand voltage: 2500V
  • Contact Impedance: 0.5m Ω Max
  • Mechanical life: No-load plug in /out >10000 times
  • Coupled insertion/removal force: 45N<F<80N
  • Working temperature: -30°C ~+ 50°C
Package Included:
  • 1x Adaptor
