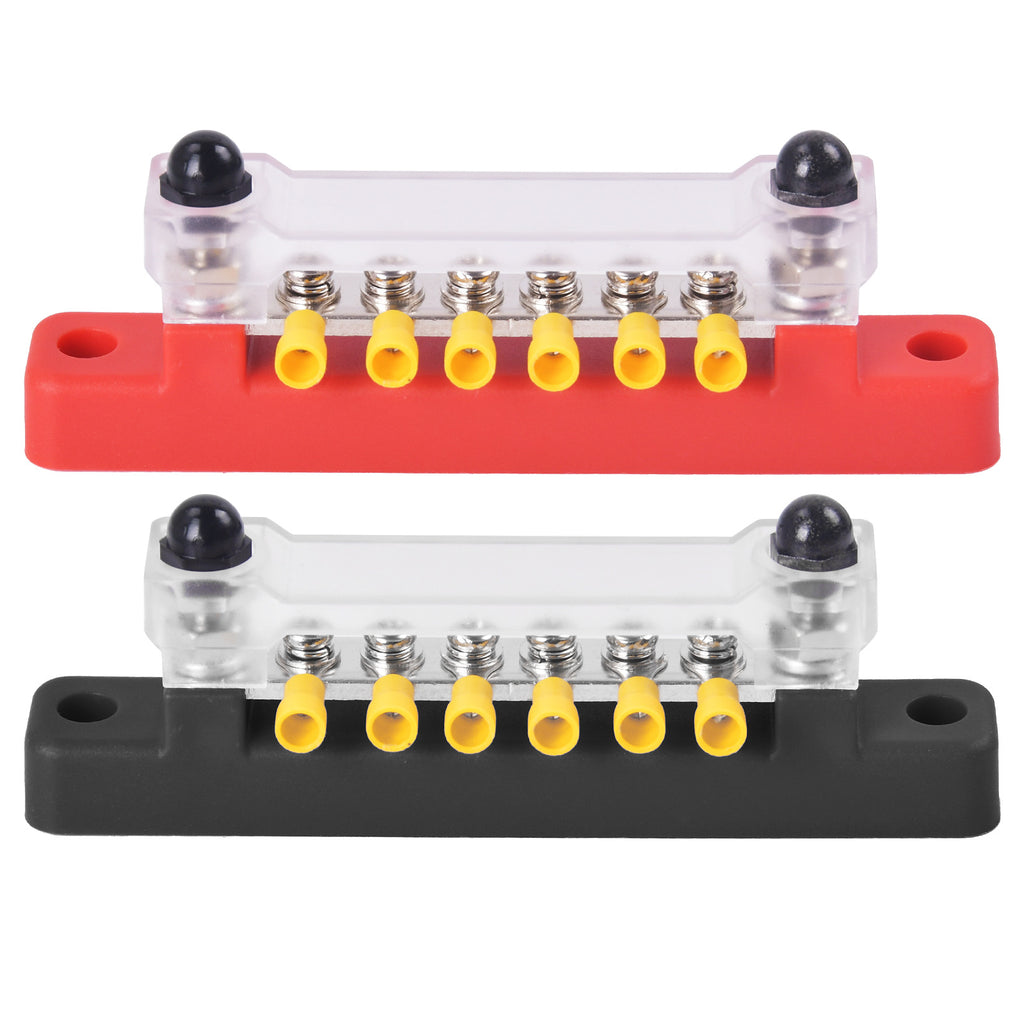

6 Way Bus Bar Auto & Marine Power Distribution Earthing Block 150A

6 Way Bus Bar Auto & Marine Power Distribution Earthing Block 150A

: In stock

£5.20 Sale

£5.20

Category:

Features:
  • A pair of red and black busbars with ring terminal and cover, wide range of use to protect your safety. Maximum rated voltage: 48V DC, Continuous Rating: 150A.
  • 6 way M4 terminal busbar with 2 x M6 terminal studs for power connection.
  • Nickel-plated copper busbar contact plate has low strength, maximum conductivity and anti-corrosion protection. High temperature resistance, abrasion resistance and safer use. The 6 terminal bars are ideal for wiring cars and marine boats, helping to organize and clean up messy wiring, suitable for all types of power and distribution on the ground.
  • Transparent polycarbonate(PC) cover adds additional protection, fireproof and dustproof and accidental touch protection.The environmentally friendly flame retardant nylon base has the best strength and durability. Stainless steel studs and screws are anti-rust and anti-corrosion, suitable for any environment.
  • 12V-48V Power distributor widely used for cars, pick-ups, trailers, campers, motorcycles, recreational vehicles, trucks, vans, caravans, yachts, boats, etc.
Specification:
  • Material: Nylon + Stainless Steel + PC
  • Connecting Rod Material: Nickel-plated copper
  • Number of Circuits : 6-way
  • Terminal of busbar : 6 x M4
  • Busbar Studs : 2 x M6
  • Continuous Rating: 150A (Maximum)
  • Input voltage: DC12-48V
  • Maximum Voltage Rating: 48V DC
  • Mounting Hole Centres : 105mm
  • Overall Size : 120mm (L) x 20mm (W) x 42mm (H)
Package Includes:
  • 2 x 6 Way Busbar with Lid (1 Red+1 Black)
  • 4 x Screws
  • 12 x Wiring Terminals
