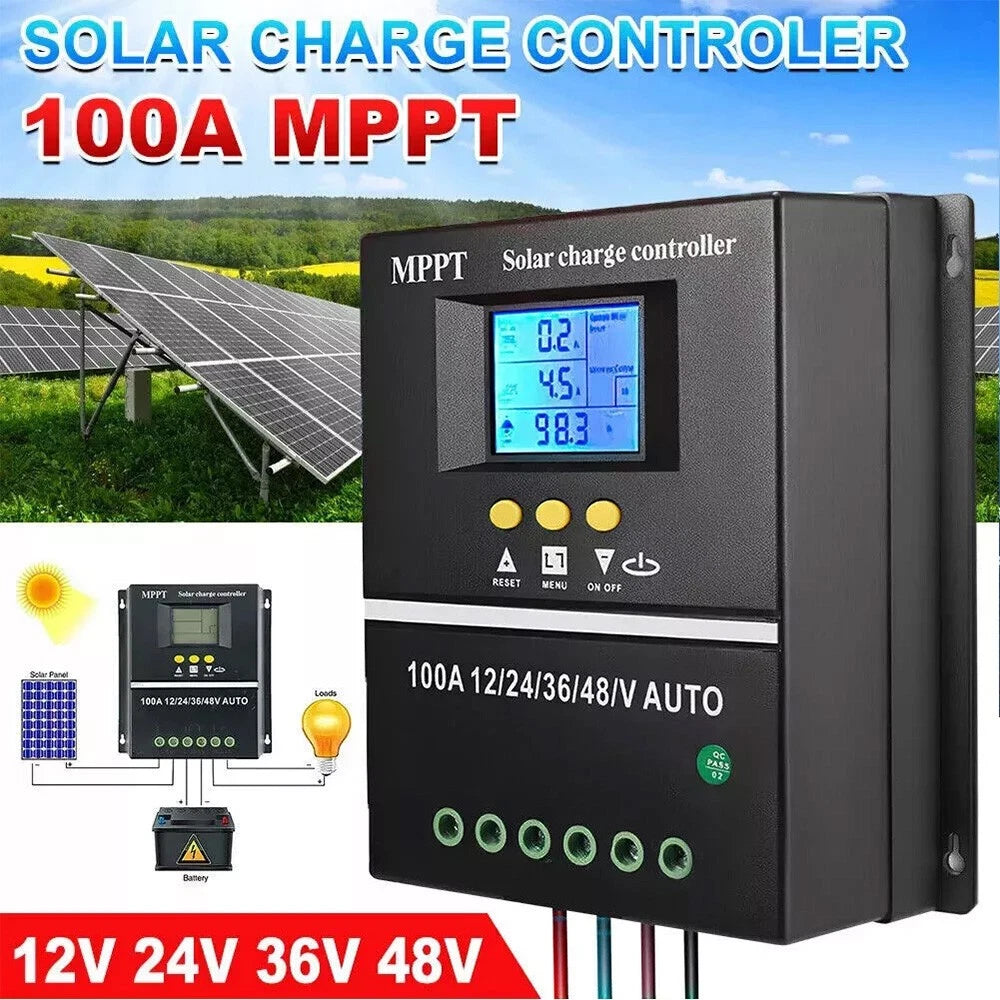

Versatile Operating Modes
This solar charge controller offers 7 operating modes to suit a wide range of applications, including charging mode, light control, delay control, standard control, manual control, timer control, and factory test mode. It provides flexible performance for different solar power setups and user needs.
Large LCD Display
Designed with a clear, easy-to-read LCD screen, the controller displays real-time system information such as battery status, solar panel status, operating mode, load output status, and key parameters. This makes monitoring and adjusting your system simple and convenient.
Efficient MPPT Charging
Featuring automatic MPPT (Maximum Power Point Tracking) charging technology, the controller helps maximize the energy harvested from your solar panels and improve charging efficiency. This allows for more effective power conversion and better overall system performance.
Flexible Load/Discharge Control
The controller supports multiple load and discharge control modes, including light control, delayed discharge, manual control, and more. This gives you greater flexibility to customize system operation based on your actual usage requirements.
Wide Compatibility & Built-In Protection
Compatible with 12V / 24V / 36V / 48V battery and solar panel systems, this controller is suitable for a variety of off-grid applications. It also includes important protection features such as low-voltage protection, support for optional air switch integration, and a recommended installation sequence for safer operation: battery first, then solar panel, then load.
Technical Specifications
-
Type: Solar Charge Controller
-
Maximum charging current: 100A
-
Maximum input voltage of photovoltaic panels: 13V-14.8V(12V), 26V-29.6V(24V), 39V-44.8V(36V), 52V-59.2V(48V)
-
Maximum input power of photovoltaic panels: 1200W (12V), 2400W (24V), 3600W (36V), 4800W (48V)
-
Output voltage: DC12V/24V/36V/48V; DC5V/1.5Ax2USB
-
Support Battery: Lithium Battery & Lead Acid Battery
-
Working temperature: -25℃~65℃
-
Cooling method: heat sink self-cooling
-
Charging method: Focused MPPT modulation charging
-
Working mode: seven
-
Protection function: prevent overcharge, overvoltage/DC output low voltage, high voltage protection, reverse polarity protection, etc.
Package Included:
1x Solar controller
1x Manual
